Мы занимаемся профессиональным ремонтом автомобильных подъемников Maha и Maha Slift.
ЗВОНИТЕ! МЫ подберем запасные части по артикулу или фотографии в Viber, Watsapp ! Большое количество запчастей на многие модели подъемников различных производителей OMA, Maha, Sicam, Slift, MEGA, NUSSBAUM
В случае самостоятельного ремонта, реализуем необходимые запасные части, узлы, двигатели, сиситемы. Поиск деталей и механизмов осуществляется при помощи артикулов. Артикул возможно установить по деталировке автоподъника, которые мы предаставляем своим клиентам.
Профессиональный подход и правильное отношение к делу позволяет нам в кратчайшие сроки установить поломку, найти необходимую запчасть, произвести замену и ремонт. Вы не теряете время и своих клиентов.
В настоящий момент имеются запасные части и деталировки (представлены самые популярные модели остальные по запросы):
1) ECON II ( 2 ) Maha
2) ECON III ( 3 ) Maha Econ 3, maha econ iii
- 1 ECON III 3.0-3.5-4.0
- 2 ECON III 5.0
3) ECON Lift Maha
- ECONLIFT
- ECONLIFT 5001
- ECONLIFT 6500
4) EL 2.5-3.0 GF Maha
5) HL 9000 Maha
6) HL 10000 HL Maha
7) HL 4.0 Maha
8) HL III 4.0 Maha
9) HL III 4.0-5.0 Maha
10) HL CS 4.0 Maha
11) MAPOWER II 3.0-3.5 Maha
12) ML2C-30E 01 Maha
13) ML2C-35E 01 Maha
14) ML2C-45E 01 Maha
15) ML2C-55E 01 Maha
16) CH0 2.40 Slift
17) C0 2.30E3 Slift
18) C0 2.50E3 Slift
|

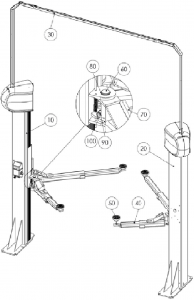

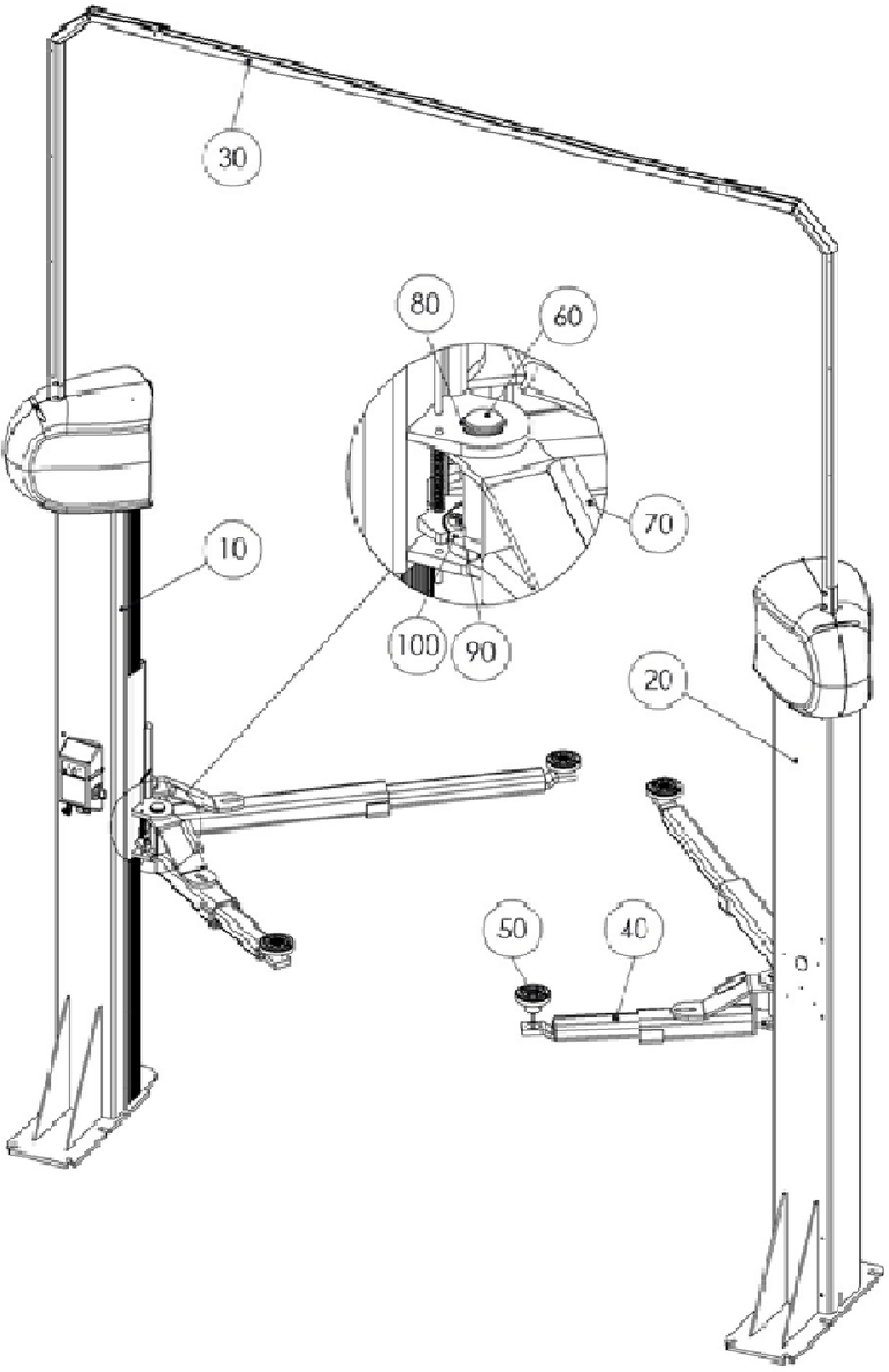

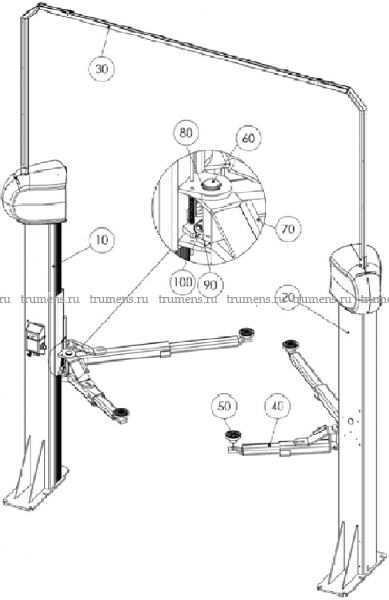

Item No. |
Spare Part |
Description |
Tooltip |
Article Number |
|
10 |
Operating Column |
|
Section 1.1 |
|
|
20 |
Column |
|
Section 1.2 |
|
|
30 |
Cable Guide |
|
Section 4 |
23000020 |
|
40 |
Support Arm |
|
Section 7.1 |
|
|
50 |
Support Disk |
|
Section 7.2 |
|
|
60 |
Support Arm Pin |
|
|
020470 00014300 |
|
70 |
Edge Protection |
f. Support Arm |
|
17 3011 |
|
80 |
Snap Ring |
50x2 |
|
22 0471 050 1 |
|
90 |
Allen Screw |
M10x20 |
|
22 0912 10030 3 |
|
100 |
Toothed Washer |
|
|
23000014 |
|

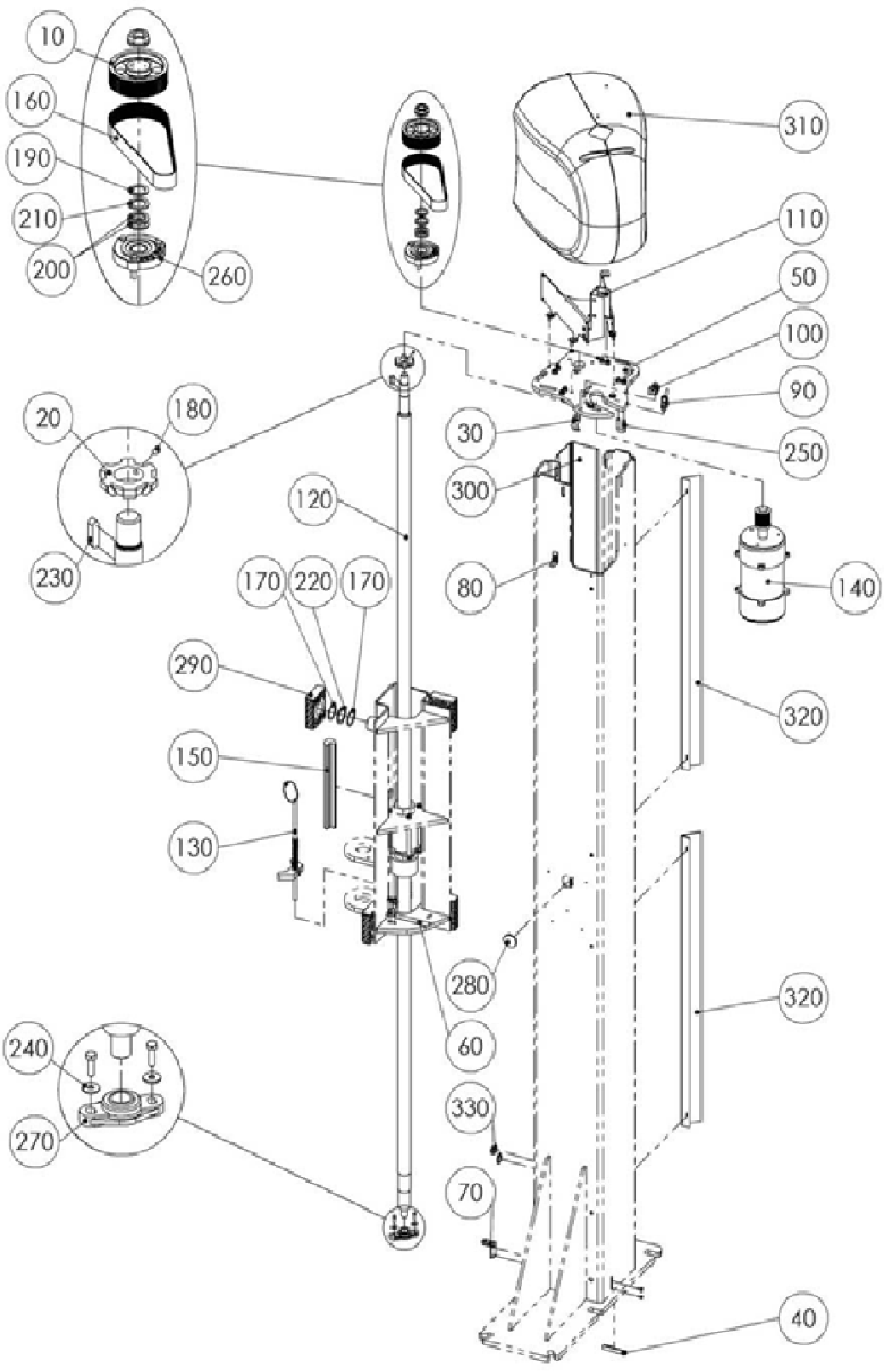

No. |
Spare Part |
Description |
Tooltip |
Article Number |
|
10 |
Pulley |
|
|
02 47 5245 |
|
20 |
Pulse Generator |
|
|
02 47 5270 |
|
30 |
Angle |
|
|
02 47 5290 |
|
40 |
Protective Insert |
|
|
020470 00001 |
|
50 |
Motor Plate |
|
|
020470 00006500 |
|
60 |
Leaf Spring |
|
|
020470 00007000 |
|
70 |
Angle |
|
|
020470 00013700 |
|
80 |
Angle |
|
|
020470 00014500 |
|
90 |
Belt Tensioner |
Small, f. Motor |
|
020470 00080 0 |
|
100 |
Belt Tensioner |
Big |
|
020470 00081 0 |
|
110 |
Holder |
|
|
030470 00007700 |
|
120 |
Screw Drive |
|
Section 5 |
030470 00019200 |
|
130 |
Locking Device |
|
Section 6 |
030470 00054 0 |
|
140 |
Motor Assy |
3.0kW |
|
030470 00217 0 |
|
150 |
Edge Protection |
f. Carriage |
|
17 3009 |
|
160 |
Ribbed V-Belt |
|
|
20 9652 |
|
170 |
Spring Washer |
B 39 |
|
22 0137 5040 5 |
|
180 |
Threaded Pin |
M6x8 |
|
22 0914 06008 |
|
190 |
Shim Ring |
28x40x2 |
|
22 0988 284020 |
|
200 |
Shim Ring |
30x42x2 |
|
22 0988 304220 |
|
210 |
Shim Ring |
30x42x2.5 |
|
22 0988 304225 |
|
220 |
Shim Ring |
40x50x2.5 |
|
22 0988 405025 |
|
230 |
Feather Key |
A8x7x30 |
|
22 6885 080730 |
|
240 |
Washer |
A6.4 |
|
22 9021 06 1 |
|
250 |
Mounting Bar |
M8 |
|
23 0170 |
|
260 |
Flange Bearing |
Top |
|
24 8015 100 |
|
270 |
Flange Bearing |
Bottom |
|
24 8016 000 |
|
280 |
Slider Block |
|
|
31 6068 |
|
290 |
Screw Cover |
|
|
23000011 |
|
300 |
Cover Hood |
|
|
23000024 |
|
310 |
Cable Cover |
|
|
23000025 |
|
320 |
Plug |
|
|
23000041 |
|

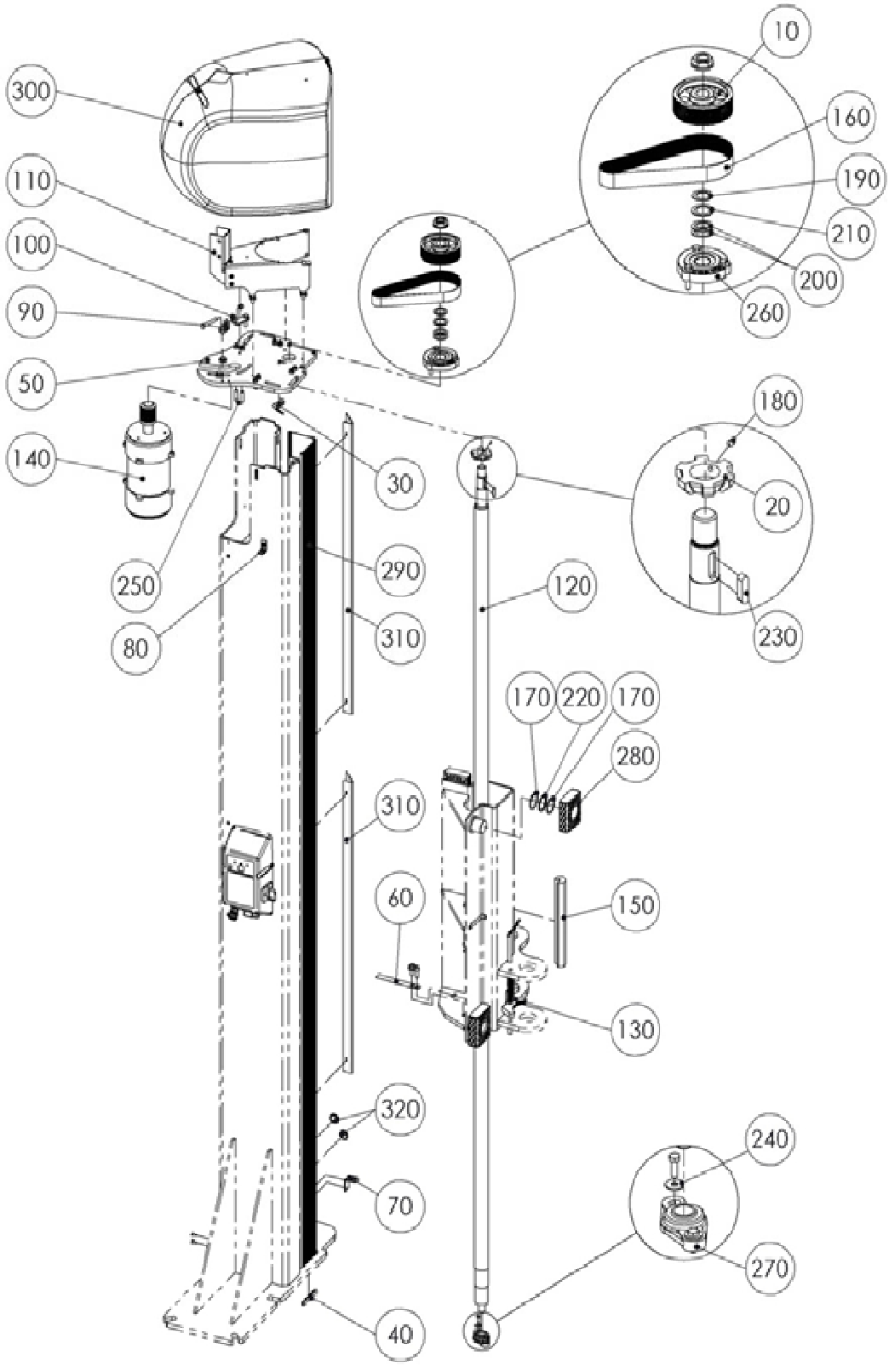

Item No. |
Spare Part |
Description |
Tooltip |
Article Number |
|
10 |
Pulley |
|
|
02 47 5245 |
|
20 |
Pulse Generator |
|
|
02 47 5270 |
|
30 |
Angle |
|
|
02 47 5290 |
|
40 |
Protective Insert |
|
|
020470 00001 |
|
50 |
Motor Plate |
|
|
020470 00006500 |
|
60 |
Leaf Spring |
|
|
020470 00007000 |
|
70 |
Angle |
|
|
020470 00013700 |
|
80 |
Angle |
|
|
020470 00014500 |
|
90 |
Belt Tensioner |
Small, f. Motor |
|
020470 00080 0 |
|
100 |
Belt Tensioner |
Big |
|
020470 00081 0 |
|
110 |
Holder |
|
|
030470 00007800 |
|
120 |
Screw Drive |
|
Section 5 |
030470 00019200 |
|
130 |
Locking Device |
|
Section 6 |
030470 00054 0 |
|
140 |
Motor Assy |
3.0kW |
|
030470 00217 0 |
|
150 |
Edge Protection |
f. Carriage |
|
17 3009 |
|
160 |
Ribbed V-Belt |
|
|
20 9652 |
|
170 |
Spring Washer |
B 39 |
|
22 0137 5040 5 |
|
180 |
Threaded Pin |
|
|
22 0914 06008 |
|
190 |
Shim Ring |
28x40x2 |
|
22 0988 284020 |
|
200 |
Shim Ring |
30x42x2 |
|
22 0988 304220 |
|
210 |
Shim Ring |
30x42x2.5 |
|
22 0988 304225 |
|
220 |
Shim Ring |
40x50x2.5 |
|
22 0988 405025 |
|
230 |
Feather Key |
A8x7x30 |
|
22 6885 080730 |
|
240 |
Washer |
A6.4 |
|
22 9021 06 1 |
|
250 |
Mounting Bar |
M8 |
|
23 0170 |
|
260 |
Flange Bearing |
Top |
|
24 8015 100 |
|
270 |
Flange Bearing |
Bottom |
|
24 8016 000 |
|
280 |
Plug |
|
|
31 5017 |
|
290 |
Slider Block |
|
|
31 6068 |
|
300 |
Screw Cover |
|
|
23000011 |
|
310 |
Cover Hood |
|
|
23000024 |
|
320 |
Cable Cover |
|
|
23000025 |
|
330 |
Plug |
|
|
23000041 |
ECON III
|
Item |
Part # |
Description |
Specification |
|
10 |
02 47 5240 |
Pulley 3t |
14 Ribs |
|
020470 00003700 |
Pulley 3.5t/4t |
18 Ribs |
|
|
20 |
02 47 5245 |
Pulley 3t |
14 Ribs |
|
020470 00003600 |
Pulley 3.5t/4t |
18 Ribs |
|
|
30 |
02 47 5270 |
Pulse Generator |
|
|
40 |
02 47 5290 |
Angle |
|
|
50 |
020470 00001800 |
Belt Tensioner |
Sh. 70x20x5 |
|
60 |
020470 00001 |
Protective Insert |
|
|
70 |
020470 00006500 |
Motor Plate |
Sh. 288x288x12 |
|
80 |
020470 00007000 |
Leaf Spring |
|
|
90 |
020470 00013700 |
Angle |
Sh. 77x25x2.5 |
|
100 |
020470 00014400 |
Latch Release Rod |
Rd. 10 280 lg. |
|
110 |
020470 00014500 |
Angle |
Sh. 57x40x2.5 |
|
120 |
030470 00004400 |
Carriage 3t/3.5t |
|
|
030470 00004500 |
Carriage 4t |
|
|
|
130 |
030470 00007500 |
Column 3t/3.5t |
|
|
030470 00008700 |
Column 4t |
|
|
|
140 |
030470 00007700 |
Holder |
|
|
150 |
17 3076 |
Sponge Rubber Plate |
285x100x5 |
|
160 |
20 7066 5 |
Motor ECON III 3t |
2.4 kW |
|
20 7066 6 |
Motor ECON III 3.5t/4t |
3.0 kW |
|
|
170 |
20 9652 |
Ribbed V-Belt 3t |
14 Ribs |
|
20 9651 |
Ribbed V-Belt 3.5t/4t |
18 Ribs |
|
|
180 |
22 0125 06 1 |
Washer |
A6.4 |
|
190 |
22 0125 24 1 |
Washer |
A25 |
|
200 |
22 0137 5040 5 |
Wave Spring Washer |
|
|
210 |
22 0705 10 1 |
Slide |
A10 |
|
230 |
22 0912 08025 1 |
Allen Screw |
M8x25-8.8 |
|
240 |
22 0914 05008 |
Threaded Pin |
M5x8-45H |
|
250 |
22 0914 08008 |
Threaded Pin |
M8x8-45H |
|
260 |
22 0933 06012 1 |
Hex Head Cap Screw |
M6x12-8.8 |
|
270 |
22 0933 06020 1 |
Hex Head Cap Screw |
M6x20-8.8 |
|
280 |
22 0933 08016 1 |
Hex Head Cap Screw |
M8x16-8.8 |
|
290 |
22 0933 08030 1 |
Hex Head Cap Screw |
M8x30-8.8 |
|
300 |
22 0933 08035 1 |
Hex Head Cap Screw |
M8x35-8.8 |
|
310 |
22 0933 08045 1 |
Hex Head Cap Screw |
M8x45-8.8 |
|
320 |
22 0934 05 1 |
Hex Nut |
M5-8 |
|
330 |
51 3072 |
Proximity Switch, Inductive |
M12 / 2 mm / Cable Length: 3.5 m |
|
340 |
22 0934 2420 1 |
Hex Nut |
M24x2-8 |
|
350 |
22 0985 08 1 |
Hex Nut |
M8-04 |
|
360 |
22 0988 284020 |
Shim Ring |
28x40x2 |
|
370 |
22 0988 304220 |
Shim Ring |
30x42x2 |
|
380 |
22 0988 304225 |
Shim Ring |
30x42x2.5 |
|
390 |
22 0988 405025 |
Shim Ring |
40x50x2.5 |
|
400 |
22 1481 03016 |
Dowel Pin |
3x16 |
|
410 |
22 6798 064 1 |
Serrated Washer |
A6.4 |
|
420 |
22 6885 080730 |
Feather Key |
A8x7x30 |
|
430 |
22 6885 080750 |
Feather Key |
A8x7x50 |
|
440 |
22 7337 05016 |
Blind Rivet |
A5x16 |
|
450 |
22 7349 08 1 |
Washer |
8.4 |
|
460 |
22 7504 04819 1 |
Self-Drilling Screw |
4.8x19 |
|
470 |
22 7504 05522 1 |
Self-Drilling Screw |
5.5x22 |
|
480 |
22 7985 05012 1 |
Flat Head Screw |
M5x12-4.8-H |
|
490 |
22 7985 06008 1 |
Flat Head Screw |
M6x8-4.8-H |
|
500 |
22 9021 06 1 |
Washer |
A6.4 |
|
510 |
23 0170 |
Fastening Bow |
M8-8.8 |
|
520 |
030470 00016500 |
Load and Safety Nut Assembly 3t/3.5t |
|
|
030470 00016600 |
Load and Safety Nut Assembly 4t |
|
|
|
530 |
23000011 |
Screw Drive Cover 3t/3.5t |
|
|
23000013 |
Screw Drive Cover 4t |
|
|
|
540 |
23000025 |
Cable Cover |
|
|
550 |
23000024 |
Cover Hood ECON III |
|
|
560 |
23000015 |
Gear Segment |
|
|
570 |
23000026 |
Pressure Spring |
|
|
580 |
24 8015 000 |
Flange Bearing |
BE 72-30 |
|
590 |
24 8016 000 |
Flange Bearing igubal |
|
|
600 |
31 6068 |
Slider Block |
10x83x30 |
|
610 |
31 5050 |
Cap Plug |
|
|
620 |
53 2644 |
Cap Plug ECON |
Æ40 |
|
630 |
51 3073 |
Proximity Switch, Inductive |
M12 / 2 mm / Cable Length: 0.5 m |
|
640 |
23 4770 001 |
Screw Drive |
|
|
650 |
23000032 |
Key Ring |
|
